How to run a Sequencer Coordinator Manager (SQM)

The Sequencer Coordinator Manager (SQM) is a command-line tool that allows you to manage the priority list of sequencers, update their positions, add new sequencers to the list, and refresh the lists from the Redis server. The tool offers keyboard-only support. Any changes you make are stored locally until you choose to save and push them to the Redis server.

  • Here is an example of how to start the Sequencer Coordinator Manager and connect to a local Redis server:
    git clone --branch v3.1.0 https://github.com/OffchainLabs/nitro.git
    cd nitro
    make target/bin/seq-coordinator-manager
    ./target/bin/seq-coordinator-manager redis://127.0.0.1:6379

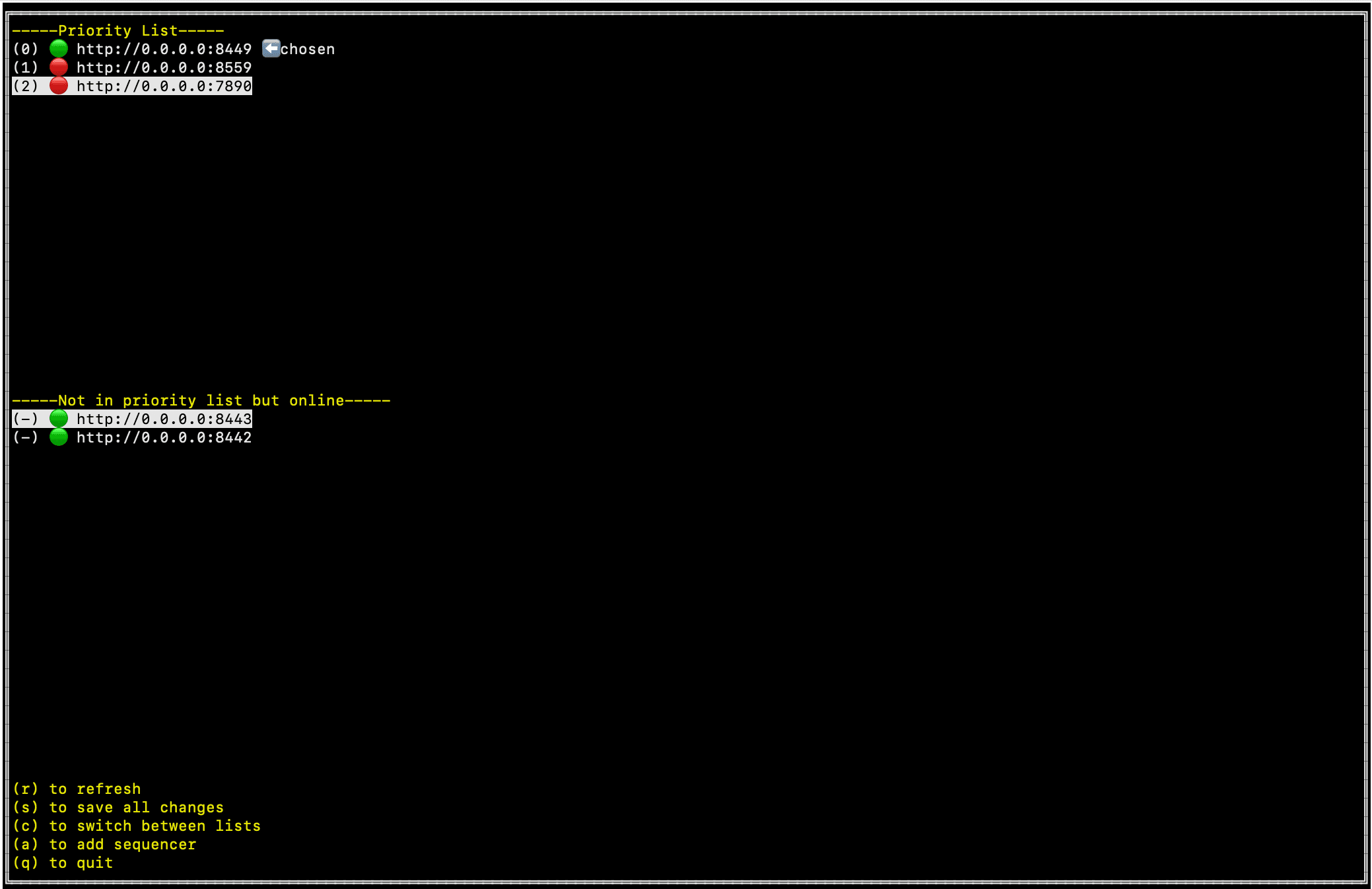

If mouse support is enabled, you can use your mouse to explore the tool. Otherwise, use your keyboard to explore the UI. The enter key selects options; c switches focus between lists. When you bring up any form, you can navigate within the form's options using the Tab key and use the up/down arrow keys to select options from the dropdown menu.

seq-coordinator-manager

note

One of the sequencers is marked with a chosen indicator. This visual cue helps you identify the current chosen sequencer.

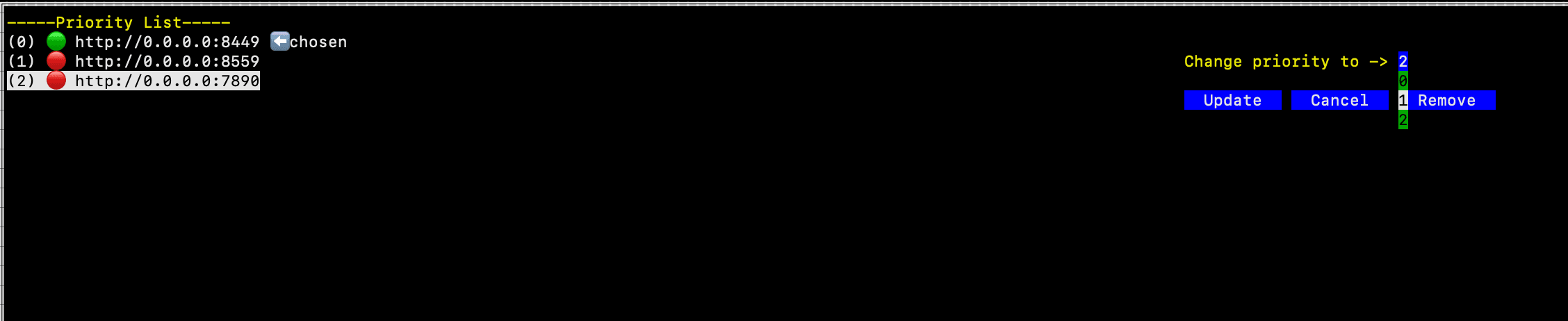

You can click/enter on any sequencer element in the priority list to bring up a form for updating its position. Within this form, you have the options to make changes via a dropdown menu and then either click Update to see the change locally, Cancel to cancel the operation, or Remove to remove the sequencer from the priority list.

When a sequencer is removed, it is automatically added to the --Not in priority list but online-- list if it is online. Please remember that all changes made using this method are local and need to be saved to the Redis server by pressing s from the keyboard shortcuts to make them permanent.

change-priority

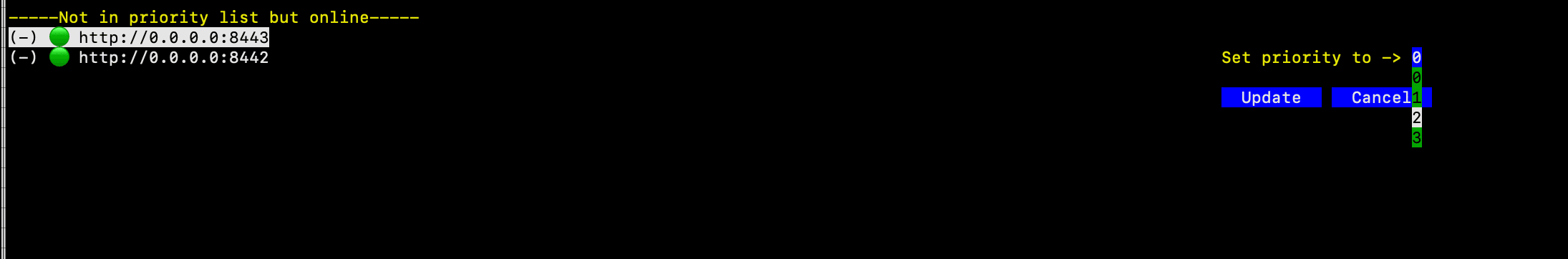

After selecting a sequencer from the non-priority list, you are given the option to add the selected sequencer to the priority list at any position of your choice. You can specify the position via a dropdown menu that lists all possible positions. Clicking Update will then display the updated priority list with the newly added sequencer in the chosen position.

change-priority

You can also add a new sequencer to the priority list by pressing a from the keyboard shortcuts. This action will bring up a form to enter the sequencer details. After adding the sequencer URL, you can click Add to see the changes or Cancel to abort the operation.

change-priority

To exit the tool, press q from the keyboard shortcuts.
