The Arbitrum protocol itself technically has no native notion of any token standards, and gives no built-in advantage or special recognition to any particular token bridge. In this page we describe the "canonical bridge", which was implemented by Offchain Labs, and should be the primary bridge most users and applications use; it is (effectively) a decentralized app (dApp) with contracts on both Ethereum (the Layer 1, or L1) and Arbitrum (the Layer 2, or L2) that leverages Arbitrum's cross-chain message passing system to achieve basic desired token-bridging functionality. We recommend that you use it!
In our token bridge design, we use the term "gateway" as per this proposal; i.e., one of a pair of contracts on two different domains (i.e., Ethereum and an Arbitrum chain), used to facilitate cross-domain asset transfers.
We now describe some core goals that motivated the design of our bridging system.
Custom gateway functionality
For many ERC-20 tokens, "standard" bridging functionality is sufficient, which entails the following: a token contract on Ethereum is associated with a "paired" token contract on Arbitrum.
Depositing a token entails escrowing some amount of the token in an L1 bridge contract, and minting the same amount at the paired token contract on L2. On L2, the paired contract behaves much like a normal ERC-20 token contract. Withdrawing entails burning some amount of the token in the L2 contract, which then can later be claimed from the L1 bridge contract.
Many tokens, however, require custom gateway systems, the possibilities of which are hard to generalize, e.g.:
- Tokens which accrue interest to their holders need to ensure that the interest is dispersed properly across layers, and doesn't simply accrue to the bridge contracts
- Our cross-domain WETH implementations requires tokens be wrapped and unwrapped as they move across layers.
Thus, our bridge architecture must allow not just the standard deposit and withdraw functionalities, but for new, custom gateways to be dynamically added over time.
Canonical L2 representation per L1 token contract
Having multiple custom gateways is well and good, but we also want to avoid a situation in which a single L1 token that uses our bridging system can be represented at multiple addresses/contracts on the L2 as this adds significant friction and confusion for users and developers. Thus, we need a way to track which L1 token uses which gateway, and in turn, to have a canonical address oracle that maps the tokens addresses across the Ethereum and Arbitrum domains.
Canonical token bridge implementation
With this in mind, we provide an overview of our token bridging architecture.
Our architecture consists of three types of contracts:
- Asset contracts: These are the token contracts themselves, i.e., an ERC-20 on L1 and it's counterpart on Arbitrum.
- Gateways: Pairs of contracts (one on L1, one on L2) that implement a particular type of cross-chain asset bridging.
- Routers: Exactly two contracts (one on L1, one on L2) that route each asset to its designated gateway.

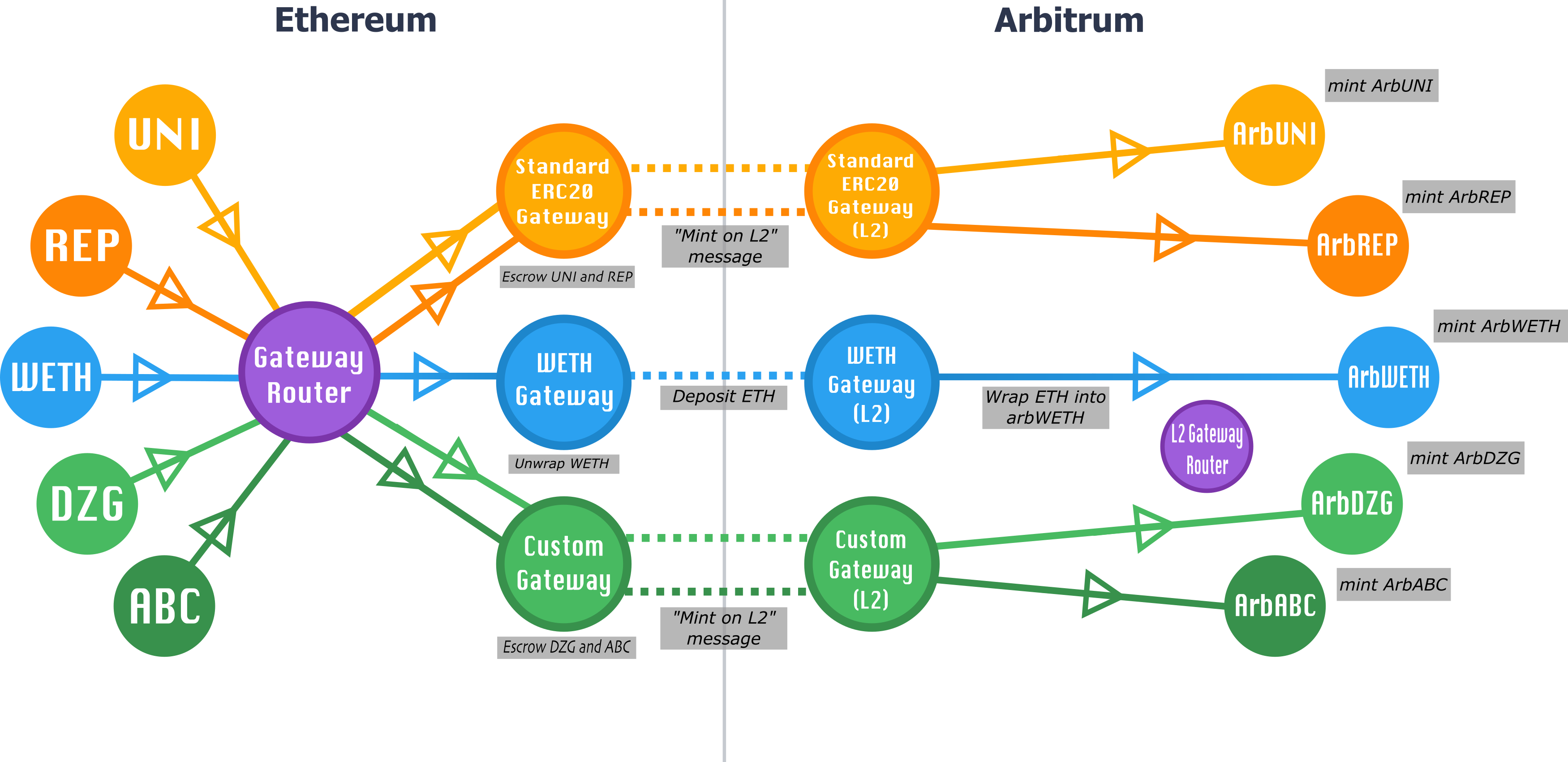

All Ethereum to Arbitrum token transfers are initiated via the router contract on L1, the
L1GatewayRouter forwards the token's deposit call to the appropriate gateway contract on L1, the
L1GatewayRouter is responsible for mapping L1 token addresses to L1Gateway contracts, thus acting as an L1/L2 address oracle, and ensuring that each token corresponds to only one gateway. The
L1ArbitrumGateway then communicates to its counterpart gateway contract on L2, the
L2ArbitrumGateway contract (typically/expectedly via retryable tickets).

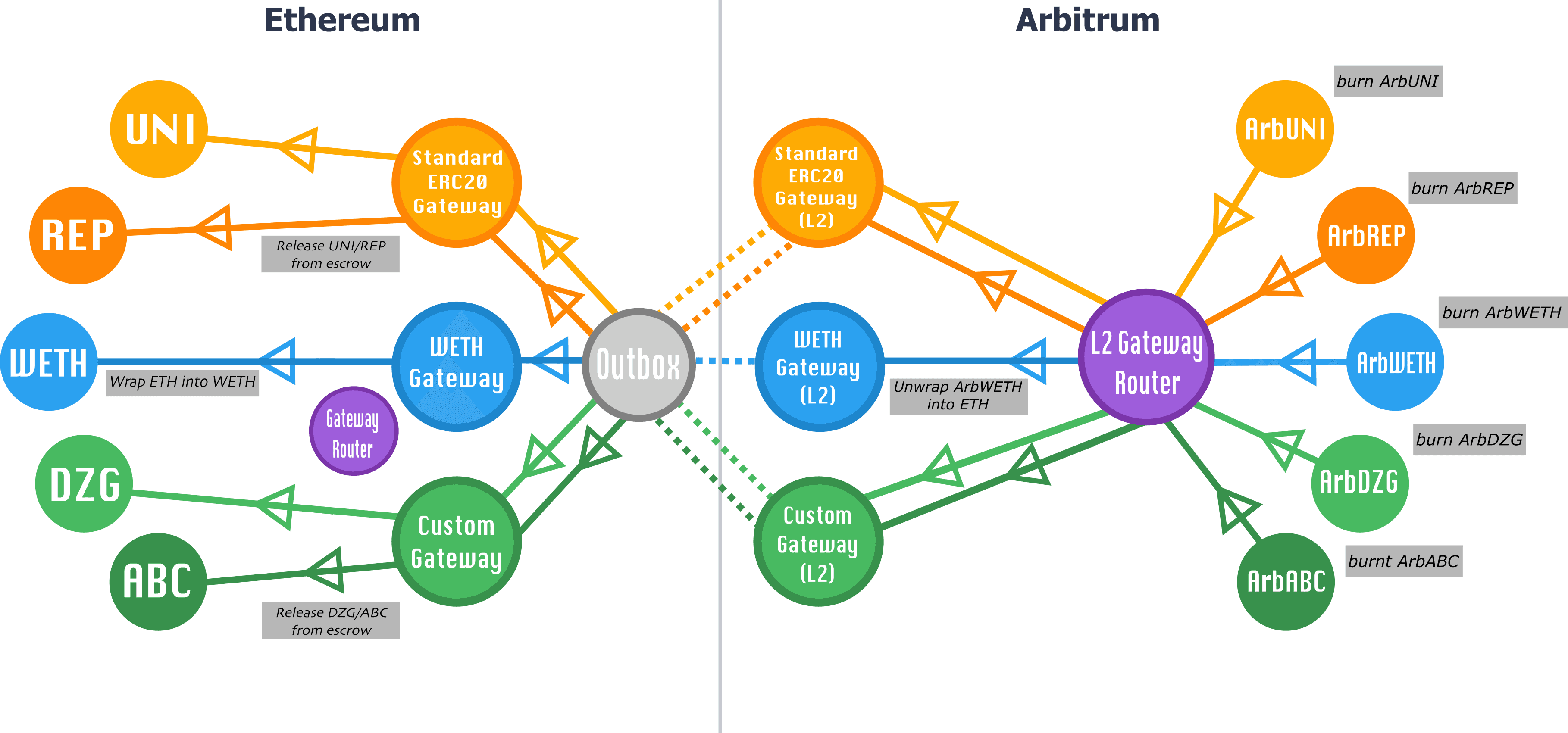

Similarly, Arbitrum to Ethereum transfers are initiated via the router contract on L2, the
L2GatewayRouter contract, which calls the token's gateway contract on L2, the
L2ArbitrumGateway contract, which in turn communicates to its corresponding gateway contract on L1, the
L1ArbitrumGateway contract (typically/expectedly via sending L2-to-L1 messages to the outbox).
For any given gateway pairing, we require that calls be initiated through the corresponding router (
L2GatewayRouter), and that the gateways conform to the TokenGateway interfaces; the
TokenGateway interfaces should be flexible and extensible enough to support any bridging functionality a particular token may require.
The standard ERC-20 gateway
By default, any ERC-20 token on L1 that isn't registered to a gateway can be permissionlessly bridged through the
You can use the bridge UI or follow the instructions in How to bridge tokens via Arbitrum’s standard ERC-20 gateway to bridge a token to L2 via this gateway.
Example: Standard Arb-ERC20 deposit and withdraw
To help illustrate what this all looks like in practice, let's go through the steps of what depositing and withdrawing
SomeERC20Token via our standard ERC-20 gateway looks like. Here, we're assuming that
SomeERC20Token has already been registered in the
L1GatewayRouter to use the standard ERC-20 gateway.
- A user calls
SomeERC20Token's L1 address as an argument).
SomeERC20Token's gateway, and finds that it's the standard ERC-20 gateway (the
L1ERC20Gateway.outboundTransferCustomRefund, forwarding the appropriate parameters.
L1ERC20Gatewayescrows the tokens sent and creates a retryable ticket to trigger
finalizeInboundTransfermethod on L2.
L2ERC20Gateway.finalizeInboundTransfermints the appropriate amount of tokens at the
arbSomeERC20Tokencontract on L2.
❗️  Please keep in mind that some older custom gateways might not have
outboundTransferCustomRefund implemented and
L1GatewayRouter.outboundTransferCustomRefund does not fallback to
outboundTransfer. In those cases, please use function
Note that arbSomeERC20Token is an instance of StandardArbERC20, which includes
bridgeBurn methods only callable by the L2ERC20Gateway.
- On Arbitrum, a user calls
L2GatewayRouter.outBoundTransfer, which in turn calls
outBoundTransferon arbSomeERC20Token's gateway (i.e., L2ERC20Gateway).
- This burns arbSomeERC20Token tokens, and calls
ArbSyswith an encoded message to
L1ERC20Gateway.finalizeInboundTransfer, which will be eventually executed on L1.
- After the dispute window expires and the assertion with the user's transaction is confirmed, a user can call
Outbox.executeTransaction, which in turn calls the encoded
L1ERC20Gateway.finalizeInboundTransfermessage, releasing the user's tokens from the
The Arbitrum generic-custom gateway
Just because a token has requirements beyond what are offered via the standard ERC-20 gateway, that doesn't necessarily mean that a unique gateway needs to be tailor-made for the token in question. Our generic-custom gateway is designed to be flexible enough to be suitable for most (but not necessarily all) custom fungible token needs. As a general rule:
If your custom token has the ability to increase its supply (i.e., mint) directly on the L2, and you want the L2-minted tokens be withdrawable back to L1 and recognized by the L1 contract, it will probably require its own special gateway. Otherwise, the generic-custom gateway is likely the right solution for you!
Some examples of token features suitable for the generic-custom gateway:
- An L2 token contract upgradable via a proxy
- An L2 token contract that includes address whitelisting/blacklisting
- The deployer determines the address of the L2 token contract
Setting up your token with the generic-custom gateway
Follow the following steps to get your token set up to use the generic-custom gateway. You can also find more detailed instructions in the page How to bridge tokens via Arbitrum’s generic-custom gateway.
0. Have an L1 token
1. Deploy your token on Arbitrum
Your token should conform to the minimum IArbToken interface; i.e., it should have
bridgeBurn methods only callable by the L2CustomGateway contract, and the address of its corresponding Ethereum token accessible via
l1Address. For an example implementation, see TestArbCustomToken.
2. Register your token on L1 to your token on L2 via the L1CustomGateway contract
Have your L1 token's contract make an external call to
L1CustomGateway.registerTokenToL2. This registration can alternatively be performed as a chain-owner registration via an Arbitrum DAO proposal.
3. Register your token on L1 to the L1GatewayRouter
After your token's registration to the generic-custom gateway is complete, have your L1 token's contract make an external call to
L1GatewayRouter.setGateway; this registration can also alternatively be performed as a chain-owner registration via an Arbitrum DAO proposal.
If you have questions about your custom token needs, feel free to reach out on our Discord server.
Other flavors of gateways
Note that in the system described above, one pair of gateway contracts handles the bridging of many ERC-20s; i.e., many ERC-20s on L1 are each paired with their own ERC-20s on Arbitrum via a single gateway contract pairing. Other gateways may well bear different relations with the contracts that they bridge.
Take our wrapped Ether implementation for example: here, a single WETH contract on L1 is connected to a single WETH contract on L2. When transferring WETH from one domain to another, the L1/L2 gateway architecture is used to unwrap the WETH on domain A, transfer the now-unwrapped Ether, and then re-wrap it on domain B. This ensures that WETH can behave on Arbitrum the way users are used to it behaving on Ethereum, while ensuring that all WETH tokens are always fully collateralized on the layer in which they reside.
No matter the complexity of a particular token's bridging needs, a gateway can in principle be created to accommodate it within our canonical bridging system.
You can find an example of implementation of a custom gateway in the page How to bridge tokens via a custom gateway.
A word of caution on bridges (aka, "I've got a bridge to sell you")
Cross chain bridging is an exciting design space; alternative bridge designs can potentially offer faster withdrawals, interoperability with other chains, different trust assumptions with their own potentially valuable UX tradeoffs, etc. They can also potentially be completely insecure and/or outright scams. Users should treat other, non-canonical bridge applications the same way they treat any application running on Arbitrum, and exercise caution and due diligence before entrusting them with their value.
